Ai R Series 20L Single Jacketed Glass Reactor w/ Chiller & Pump

  • Sale
  • Regular price $20,870.00



Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

  • Now includes a FREE high quality thermo insulation jacket (a $459 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
  • Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Patented PTFE stirring rod bearing for reliable and quiet operation.
  • Optional multi-layer stirring blades for optimal reaction results.
  • Wide range of temperature operations, from -110°F to 400°F.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
  • Easily visual operation with digital speed and temperature displays.
  • Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
  • One year warranty and lifetime US-based parts, service, and support.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

 Model  R20
 Electrical requirements
 110V 60Hz 1-PH, 90W
 Reaction glass vessel capacity
 5.3 gallons (20L)
 Cooling/heating jacket capacity
 1.6 gallons (6L)
 Glass material  High borosilicate glass 3.3
 Rotation controller  Digital controller with variable frequency drive
 Vessel head  Domed with multiple openings
 Drain valve  Flush seal design with large opening and flat flange clamp
 Agitator  Anchor design, type-304 stainless steel reinforced PTFE structure
 Condenser  Dual-cooling coil design
 Funnel  Pressure equalizing
 Vacuum gauge  Mechanical
 Swivel caster  Four
 Glass vessel temperature range
 -110°F to 400°F
 Vacuum level  < 700 torrs
 Vacuum sealing  PTFE
 Drain port ground clearance
 13 inches
 Unit height (fully assembled)  80 inches
 Shipping dimensions  24x75x31"
 Shipping weight  262 Lbs
 Click here for specs for 220V C30-40 -30°C recirculating chiller
 ULVAC 110V DTC-41 1.6 cfm 7.5 torr 2-head diaphragm pump and vacuum hose
 Download  Ai jacketed reactor brochure

Standard package

 Part description

 Quantity

Part image

 Ai 220V C30-40 -30°C 30L/min recirculating chiller and accessories 1 set
  ULVAC 110V DTC-41 1.6 cfm 7.5 torr 2-head diaphragm pump and vacuum hose 1 set
 Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)
1 set
 Glass vessel insulation jacket with openable viewing window 1 pc

 Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass

1 pc
 Condenser top vacuum port, glass 1 pc

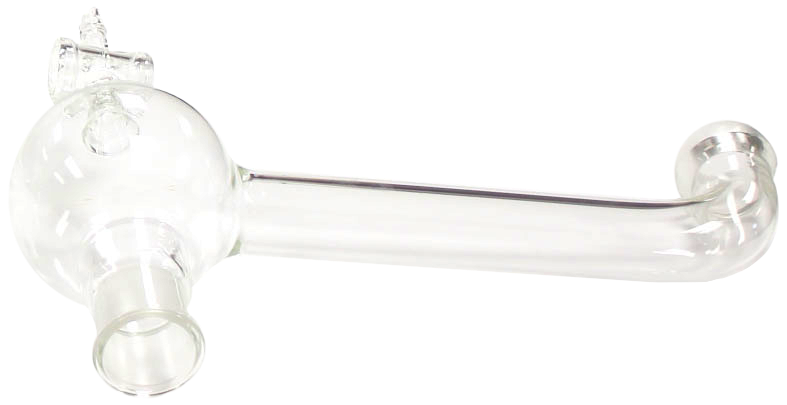

 Glass condenser dispenser with drain port and PTFE open/close valve
1 set
 Glass material feeding funnel, lid, and PTFE open/close valve
1 set
 Glass bottom drain port with PTFE open/close valve
1 set
 Glass vacuum valve
1 set
 Stirring motor controller with material temperature display
1 pc
 Stirring motor and motor support
1 set
 Mechanical vacuum gauge with two 3/8" hose barb ports
1 pc
 Temperature probe with PTFE seal
1 pc
 PTFE stirring blades, stainless steel rod with PTFE liner
1 pc
 Glass vessel 3/8" chilling fluid adapter
2 sets

 Chilling fluid connection kit 3 pcs
 PTFE sealing tape 1 pc
 PTFE stirring rod positioner/bearing kit
1 set
 Condenser dispenser connection kit 1 set
 Large opening material feeding port kit 1 set
 Bottom drain port connection kit (for 10L)
1 set
 Bottom drain port sealing flange (for 20/50/100L)  1 set
 Rubber-wrapped condenser dispenser support and condenser bracket 3 pcs
 Chilling fluid connector x 2, vacuum connector x 1
3 sets
 Allen key and backup inner hex screws 1 set
 User's manual 1 pc
